Temperature Controllers
Temperature Control Systems
Technoject Machinery Corp. provides products of the highest standards for quality, accuracy, and reliability.We offer the latest and state-of-the-art temperature controllers that are guaranteed to provide a user friendly operation, accuracy, and reliability. Contact us directly if you are interested in any of our products.
MCS® Hot runner controller –Precise and convenient process control
-
- The number 1 in user-friendliness
Unique operating functions eliminate the need for manuals and training - High quality construction
The use of high-quality components ensures maximum performance and maximum reliability - High-precision and fast control
Can also be used universally for demanding, high-cavity applications with slim, low-mass nozzles
- The number 1 in user-friendliness
High Quality Design
The high-quality design ensures a long service life and high reliability. Thanks to the pivoting display and the 3-sided LED strip, you always have an overview – and from a distance in the signal colors green, yellow and red! The power cards with external heat sinks are easy to replace and ensure optimum heat dissipation. With our high-quality connectors, we guarantee maximum performance requirements for every zone, even at elevated operating temperatures.
Operation with a wow effect: Number 1 in user-friendliness
Our hot runner controller not only offers outstanding performance, but also an impressive user interface. Unique operating functions and a clear design with meaningful icons and clearly recognizable click fields make handling child’s play. All functions can be seen at a glance in the menu and a practical information button provides a brief description of each function. You too can benefit from the simple and fast operation and produce efficiently and smoothly!
Comprehensive functionality for flexibility in your process

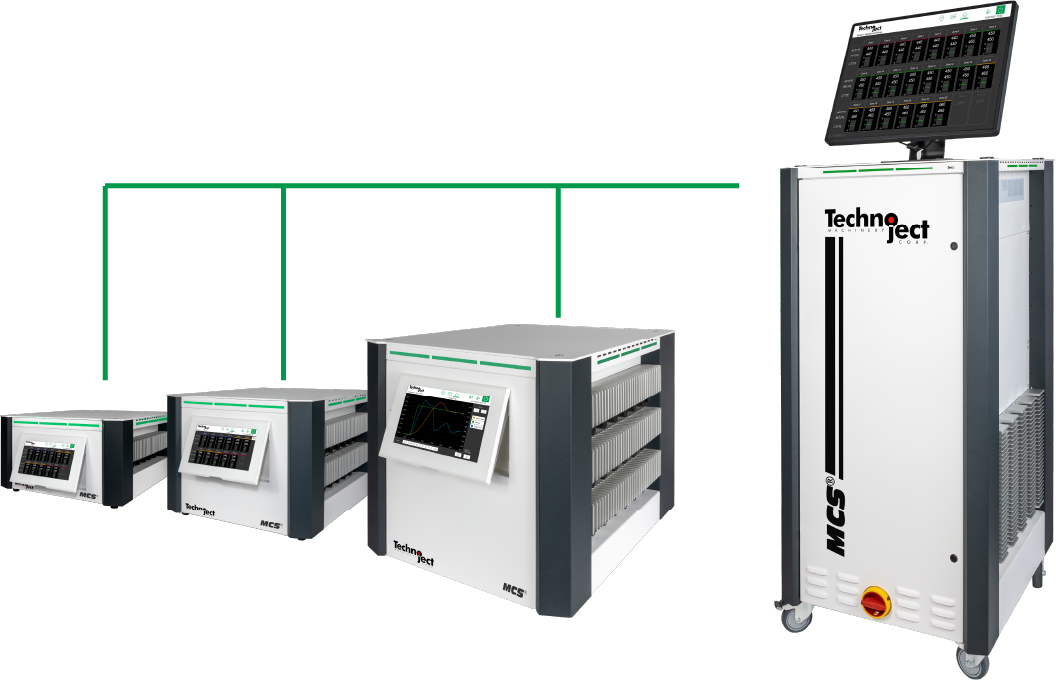

Discover the MCS hot runner controllers and experience the variety of their functions, which have been developed in over 40 years of cooperation with customers. This technology offers functionality that leaves nothing to be desired. For example, up to 480 zones can be controlled and operated centrally in a device network. With the AUTO STANDBY function, your production cycle is automatically monitored and switched to standby after a configurable waiting time when the machine is at a standstill. But that’s not all! Watch the video to find out more about the functions of our MCS hot runner controllers. Increase the efficiency and productivity of your production with MCS hot runner controllers!
Functions From Over 40 Years of Experience
Machine Connection via OPC UA
According to the new standard protocol for hot runner controllers – Euromap 82.2 – the MCS hot runner controller provides various information, which can be divided into status information, general information and determined process data. The hot runner controller can be parameterized by the injection moulding machine, including operating modes, setpoints, alarm limits and the heating process. Euromap 82.2 thus enables almost complete adjustment of all process-relevant parameters via the injection molding machine’s control system.
Minimal Downtimes in The Event of Faults
You don’t have time for disruptions? Neither do we! Our product provides you with precise instructions in words and pictures on how to proceed in the event of a fault. Simply click on the arrow buttons and the instructions are displayed step by step. This means maximum efficiency in troubleshooting and minimum downtime.
Thermodynamic Analysis
The thermodynamic analysis (TDA) compares the thermodynamic condition of your mold with a good condition previously saved as a reference. Possible differences are detected and damage or problems with the mold can be identified at an early stage. For you, this means maximum safety and effective maintenance of your molds.
Chart Recorder
The chart recorder allows you to analyze the control behavior of zones by displaying the process values actual value, setpoint and output level over time in a clear chart. It provides insights into the performance of the respective zone and is therefore used for efficient optimization. The chart recorder is an indispensable tool for precise control analysis.

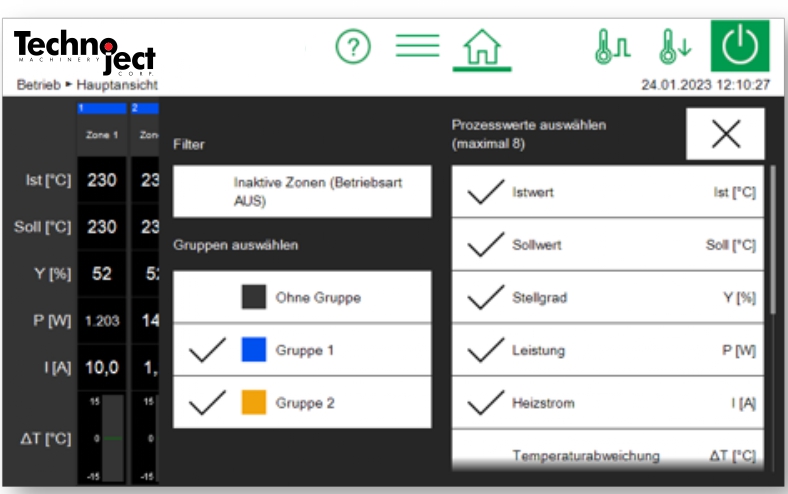

Individual Zone Display
The operator has the option of selecting from a large number of process values which are to be displayed in the zone display. This allows the zone display to be customized for each application. It is also possible to filter the display to certain groups and inactive zones in order to hide certain zones.

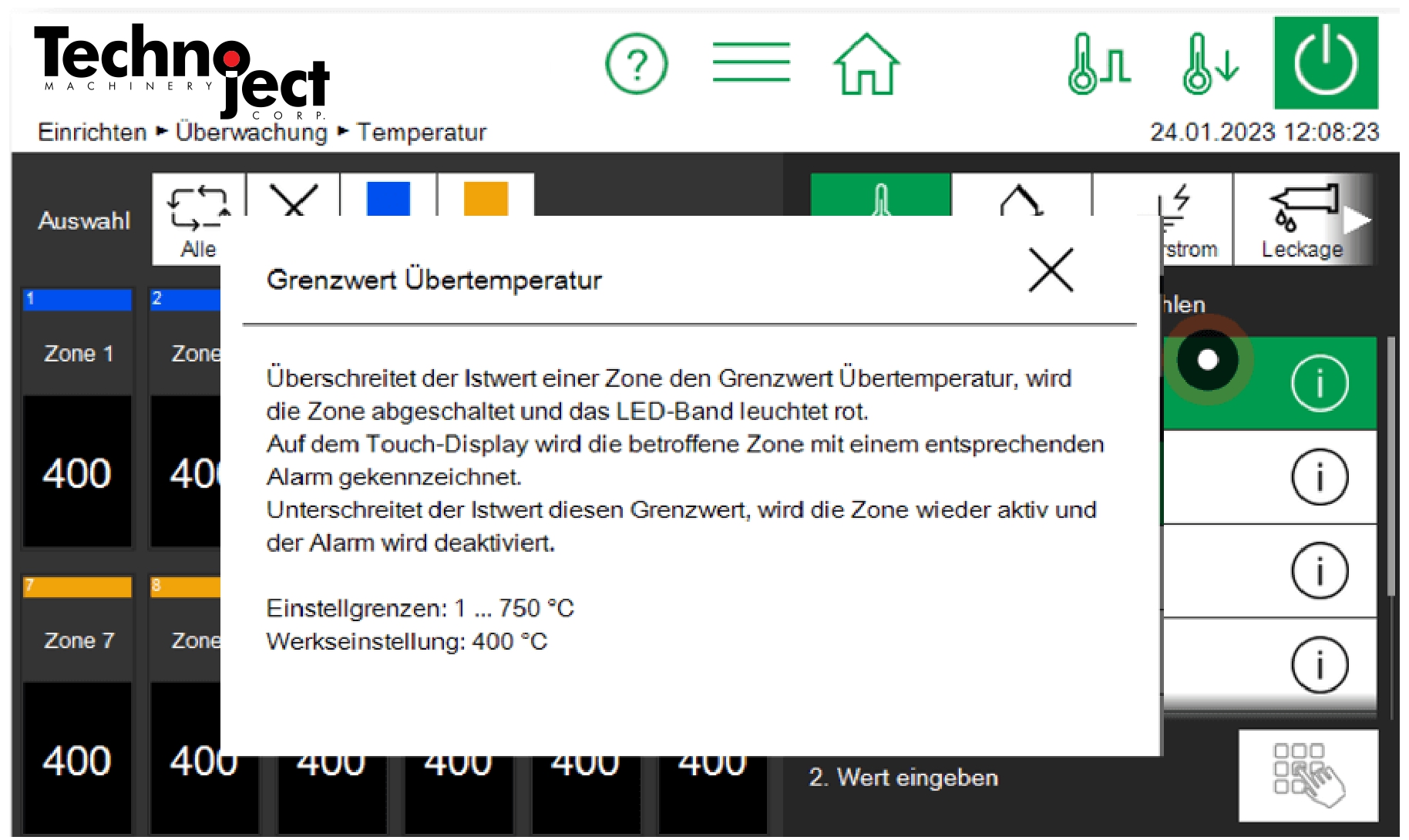

Integrated Help Function
To avoid tedious searching in the operating instructions, you can tap the info button for each function and setting to call up a brief description. This provides you with immediate information on each desired function without wasting time. This makes operating the controller child’s play.
Operating Instructions in Plain Text

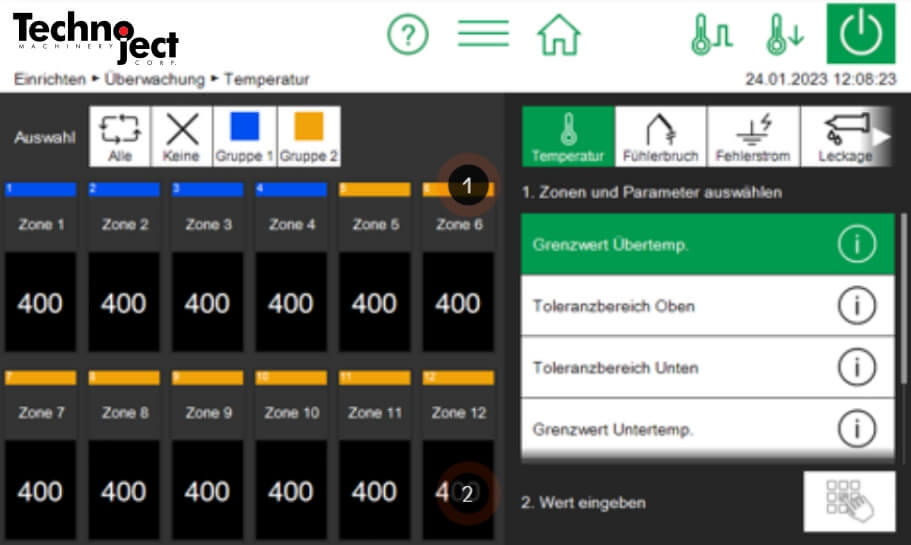

Each input is accompanied by clear instructions in easy-to-understand plain text to guide the operator through each action. This makes it easy for even inexperienced users to operate the controller and make the appropriate settings without the need for prior knowledge. Enjoy the ease of use and familiarize yourself with the functions with ease
...And Many Other Functions
Event list, index, continue heating in the event of sensor break, leakage detection, recipe management, mold test, user levels with password protection, timer, cycle monitoring with auto standby, sequential heating, mold image as standard view

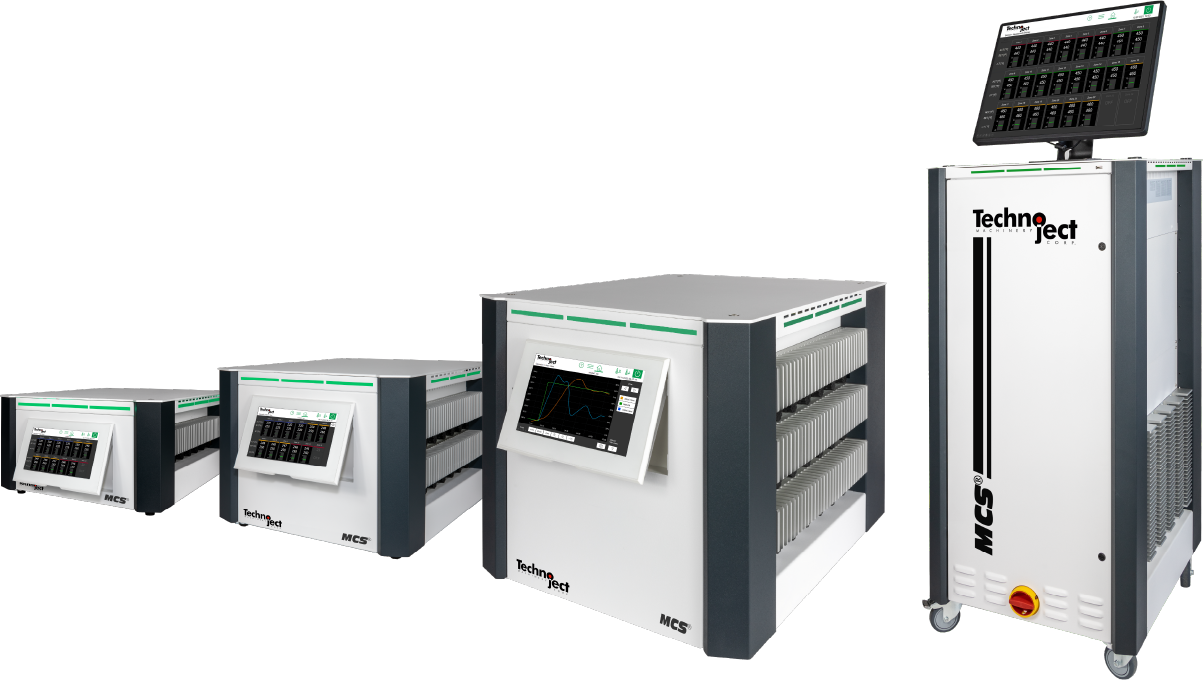

MCS Hot Runner Temperature Controller
Operation/Communication

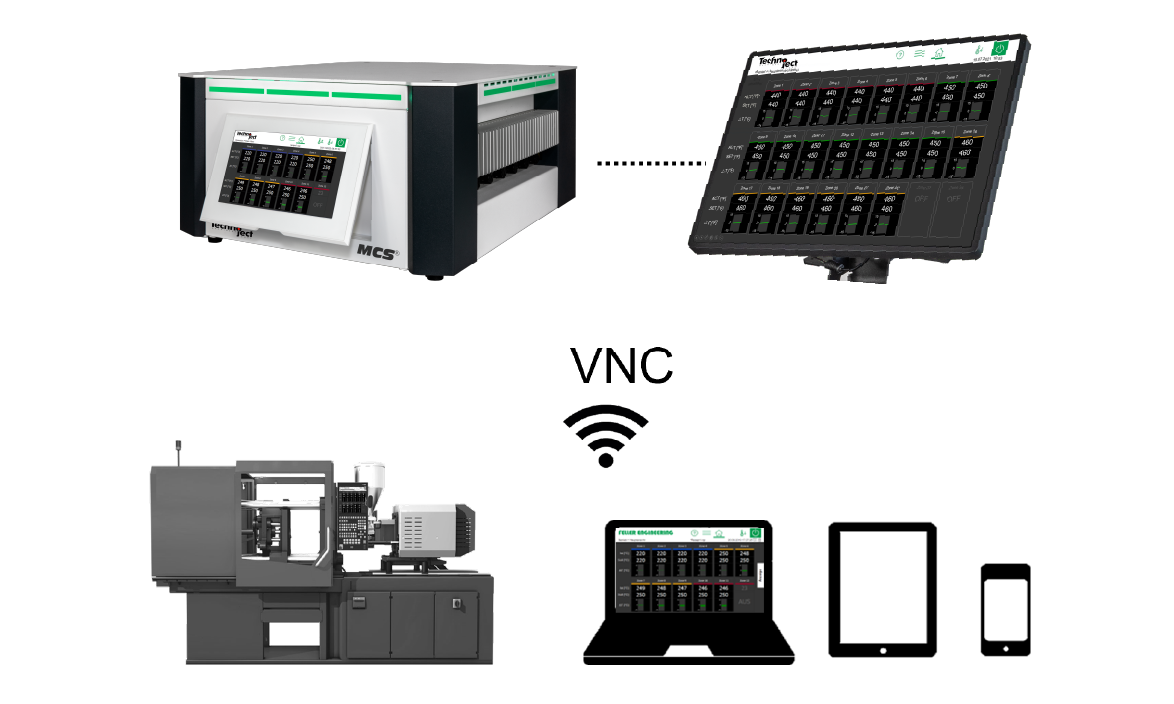

Experience a new level of operating freedom with the MCS hot runner controllers! Whether you opt for the integrated touch displays in 7″ or 10″ or prefer to use an external touch monitor in 15″ or 19″ – the choice is yours. But that’s not all: you can even control teh controller directly from your injection molding maching or notebook/tablet via VNC. Discover the unlimited flexibility of the hot runner controller and optimize your production!
Test Drive Our MCS Hot Runner Temperature Controller!
Sales Brochure
